Maximum And Minimum Withdrawal Force Testing Equipment With Clamping System

Name: Maximum And Minimum Withdrawal Force Testing Equipment With Clamping System
Brand: PEGO
Price: 1000 USD

Brand Name : PEGO

Model Number : IEC60884-1

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 piece

Price : USD1000~USD3000piece

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 30 working days

Packaging Details : Each packed in a carton box

Standard : IEC60884-1, VDE0620

Material : stainless steel

Application : for plug and socket-outlet

Shipment : By express

Warranty : 12 months

Condition : New

Contact Now

IEC60884-1 Plug Socket Tester Maximum and Minimum Withdrawal Force Test Apparatus

1. Introduction

Maximum and minmum withdrawal force test apparatus is designed according to IEC 60884-1 Fig 18 and Fig 19 and VDE0620. The clamping system is easy to operate. The top plate swivels up from a horizontal position to a vertical orientation and the clamping device can be rotated in the top plate. These features allow the device to be set up in many different configurations to meet different standard requirements. Standard plugs and weights are supplied to perform testing on sockets rated up to 16A. Test plugs made from hardened steel with roughness not exceeding 0.8mm.Top plate pivots from horizontal to vertical.

2. Specification

1) Mass incudes pricipal mass and supplementary mass

2) Standard configuration: 1 piece of 10A single pin guage/16A single pin gauge/10A dipolar pin gauge/10A tripolar pin gauge/16A tripolar pin gauge

3) 1 set of clamp device, 1 piece of carrier

Rated value	Polarity	withdrawal force (N)
		Max for multiplex pin gauge	Min for single pin gauge	Max for single pin gauge
≤10A	2	40	1.5	17
	3	50
＞10A~16A	2	50	2	18
	3	54
	＞3	70
＞16A~32A	2	80	3	27
	3	80
	＞3	100

3. Pictures:

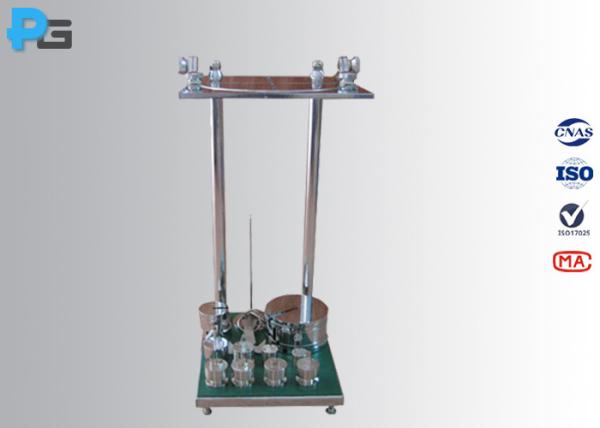

Maximum And Minimum Withdrawal Force Testing Equipment With Clamping System
